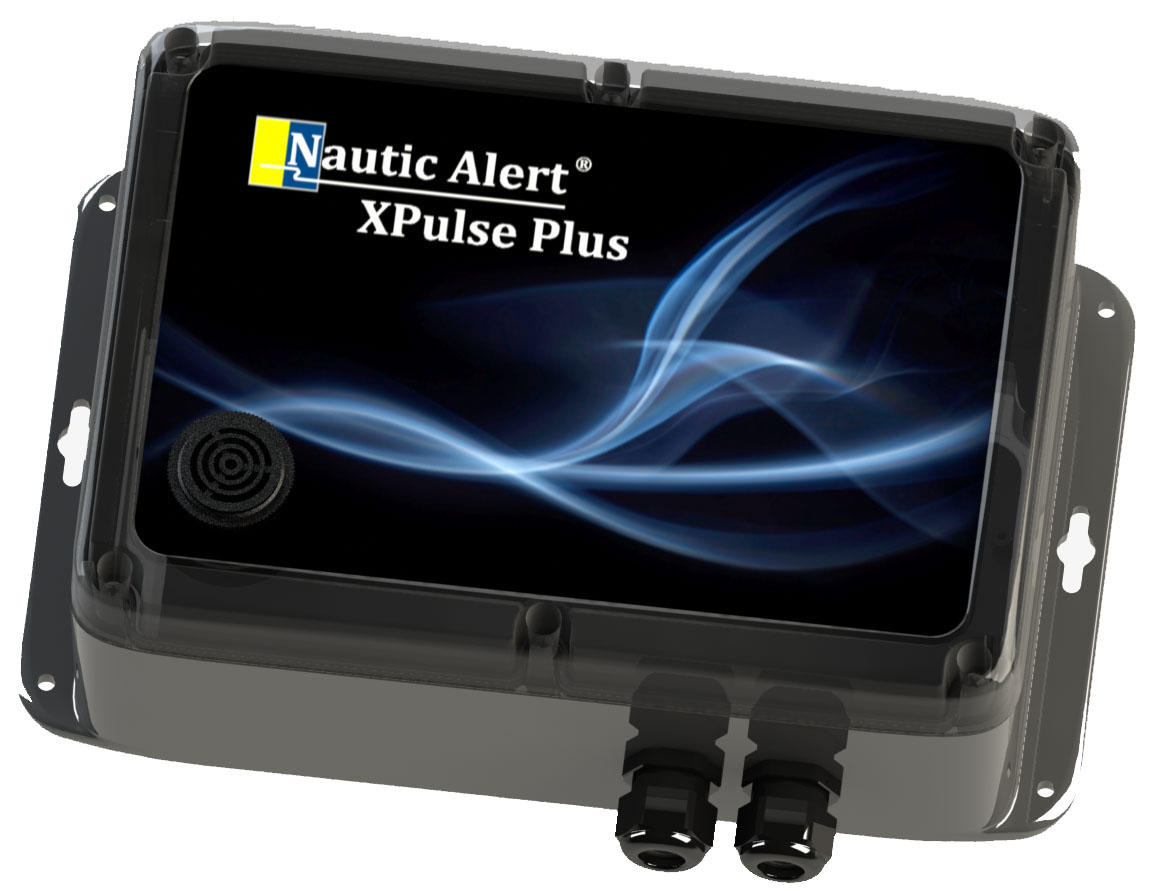

Nautic Alert XPulse Plus

Nautic Alert XPulse Plus

A SMART wireless sensor that interconnects multiple battery banks, shore power and — wired and wireless sensors to provide surveillance and early event detection. Nautic Alert Insight X2 processes the information using its internal analytic engine to understand trends and to detect events.

SMART Interconnections

  • 1 AC Shore Power Input Channel

  • 4 DC Battery Bank Input Channels for 6-37V battery systems

  • 4 “Hardwired” Input Channels for security sensors, or FLIR camera intrusion detection, or float switch and other options with 4 dedicated zones

  • 16 “Wireless” Input Channels for security and safety sensors, or FLIR camera intrusion detection, or float switch and other options with 4 dedicated zones

  • 12V Regulated Output for powering sensors

  • 12V Siren Output for outdoor or indoor external siren in conjunction with XPulse built-in 95db siren.

More XPulse Plus Capacity

Need more capacity than a single XPulse Plus provides?  No probelm, simply add up to four XPulse Plus’s and Insight X2 will automatically detect and add it for configuration and surveillance.

About Channels

A single XPulse Plus provides the ability to connect up to 16 “Wireless” security and safety sensor types with 4 zones, and 4 “Hardwired” security and safety sensor types with 4 zones.

  • Security Sensors such as contact sensors, motion sensors, FLIR imaging intrusion detection or glass break sensors

  • Safety Sensors such as carbon monoxide detectors, smoke detectors, temperature sensors or high-water float switch

  • Custom Sensors create your own sensor by using a N.O. or N.C. relay switch, and set the description for the zone.


XPulse Plus Security Sensors

XPulse supports “Wireless” and “Wired” “Normally Open” (NO) or “Normally Closed” (NC) security sensor types.  Nautic Alert offers certified security and safety sensors to ensure a reliable customer experience.

Certified Sensors

Insight X2 View

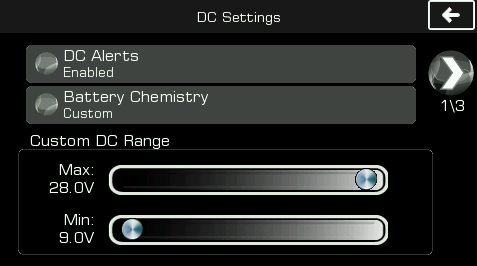

With Nautic Alert Insight X2, each battery bank can be configured for AGM, lithium, or a custom battery type and nominal voltage. Custom alert and critical thresholds can be set for each battery bank. Additionally, a customizable DC filter prevents load transients from generating false alerts, and state transitions use hysteresis of about 100mV to prevent “flapping” conditions.

Insight X2 View

With Nautic Alert Insight X2, each battery bank can be configured with thresholds that match the battery type and specifications with precision.

Insight X2 View

Nautic Alert Insight X2 detects the loss of shore power when you least expect it and notifies you on board and on your smartphone.

Insight X2 View

Configuring sensors and zones is simple with the Nautic Alert Insight X2 touchscreen.

Product Details

Download Technical

Specifications

  • DC Input Voltage: 6-37V DC
  • Shore Power Input: 9-12V DC
  • Alarm Terminals: 12V DC
  • XPulse Plus: 225mA nominal;
    425mA max
  • 12V output: 250mA max
  • -10 to 60C Ambient

Warranty

Nautic Alert XPulse Plus has a 2 year non-transferable limited warranty from the purchase date.

Ordering Information

  • Nautic Alert XPulse Plus, NAXPP-01, MSRP: $1,342
